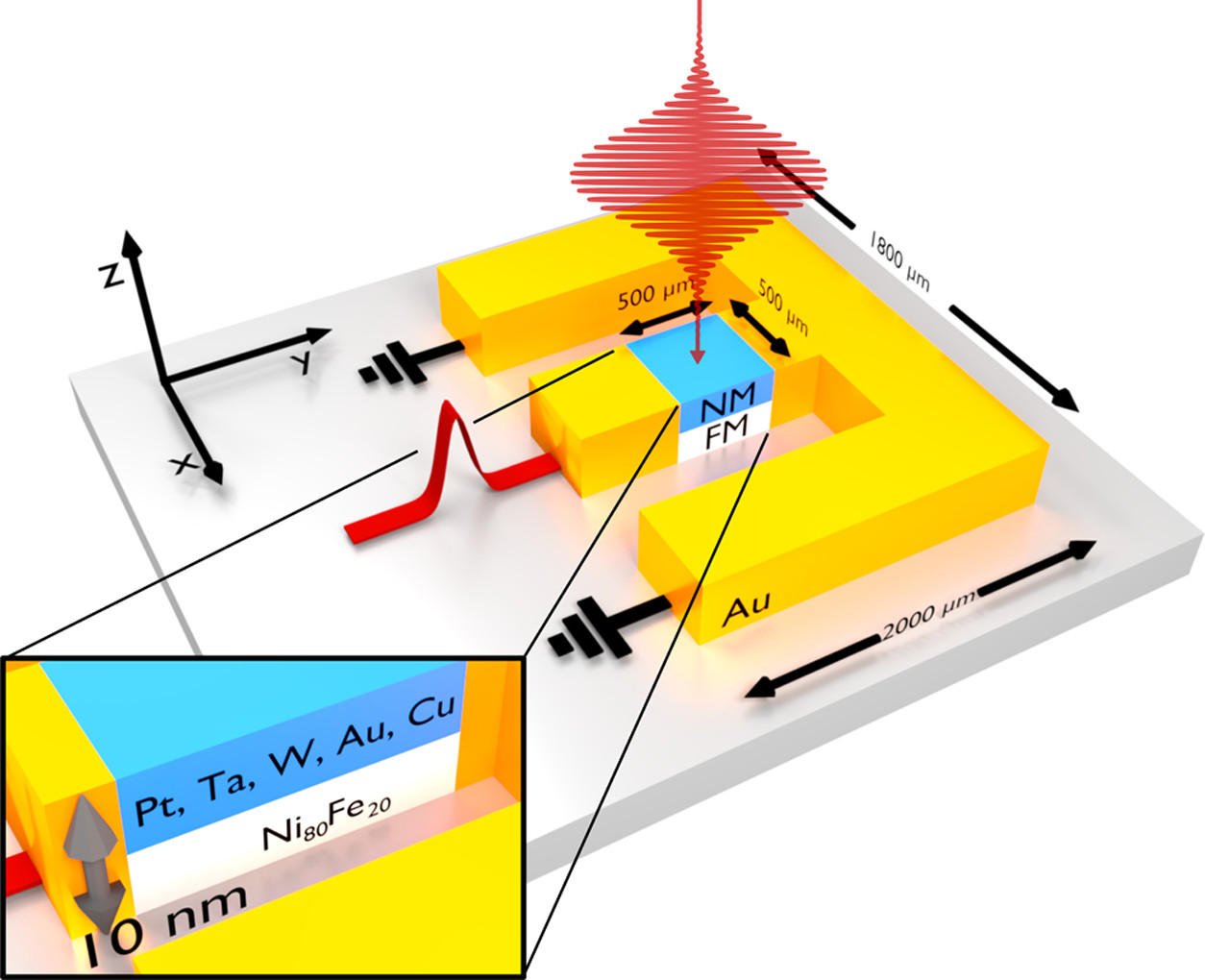

Illustration of the new miniature terahertz sources
Foto: Reprinted with permission from ACS Appl. Nano Mater. 2021, 4, 7, 7454–7460. Copyright 2021 American Chemical Society.

Kontakt für die Medien

Tom Leonhardt
Telefon: +49 345 55-21438

Ansprechpartner*in zu dieser Pressemitteilung

Professor Georg Woltersdorf
Institut of Physics
Telefon: +49 345 55-25300


Manuela Bank-Zillmann

Telefon: +49 345 55-21004
Telefax: +49 345 55-27404

Universitätsplatz 8/9
06108 Halle


Login für Redakteure

Spintronics: Physicists develop miniature terahertz sources

Nummer 120/2021 vom 14. September 2021
Researchers at Martin Luther University Halle-Wittenberg (MLU) and Freie Universität Berlin have developed a new, simple approach for generating terahertz radiation. Strong optical laser pulses enable terahertz electromagnetic fields to be generated directly at a specific point. The team has published its findings in the journal "ACS Applied Nano Materials". Potential applications for terahertz radiation are wide ranging - from materials testing to communications and security technology.

Terahertz radiation lies between microwaves and invisible infrared radiation in the electromagnetic spectrum. It is used, for instance, in materials science to study opaque materials. "Terahertz radiation has no ionizing effect; it does not remove electrons from atoms and therefore, unlike X-rays, poses no risk to health. That’s why it’s used in full-body scanners at airports," explains Professor Georg Woltersdorf, a physicist at MLU. Until now, the radiation could only be generated using relatively complex equipment, which is why it is currently not being very widely used in research. Woltersdorf’s team worked on a new approach together with researchers from Freie Universität Berlin. "The general idea was to miniaturise the process and generate the radiation exactly where it is needed - for example, directly on an electronic chip," says Woltersdorf.

For their experiments, the physicists used a high-power laser which generates light pulses that last around 250 femtoseconds. One femtosecond equals one quadrillionth of a second. These extremely short optical pulses were then directed onto a magnetic nanostructure to excite the electrons inside. "This generates an intense spin current pulse," Woltersdorf explains. Simply put, spin is the intrinsic angular momentum of electrons and forms the basis of magnetism. When the electrons are excited, a so-called spin current flows through the interface layers of the nanostructure. The inverse spin Hall effect converts it into a terahertz current pulse. This produces the desired terahertz radiation on the chip, which can be directly coupled into wire structures and utilised. "In addition, an external magnetic field can adjust the polarity of the current. This has not been possible until now," says Woltersdorf in conclusion.

The potential applications of this miniature terahertz source range from research to high-frequency electronics, medicine, materials testing and communications technology.


This study was supported financially by the Deutsche Forschungsgemeinschaft (German Research Foundation, DFG) via the Collaborative Research Center CRC/TRR 227 in and the priority program SPP 1538.


Study: Hoppe W. et al. On-Chip Generation of Ultrafast Current Pulses by Nanolayered Spintronic Terahertz Emitters. ACS Applied Nano Materials (2021). doi: 10.1021/acsanm.1c01449
